Circuit Laboratory


4.6 ( 5216 ratings )
仕事効率化 教育
開発者 Fabrizio Boco
5.99 USD

Circuit Lab is an electronic circuit analysis tool based on the modified node analysis method.

Four kind of analysis may be conducted:

- DC: linear and non linear circuits with continuous voltage and current sources;
- AC: linear e non linear circuits with sinusoidal voltage and current sources;
- Multifrequency AC Analysis: linear and non linear circuits with sinusoidal voltage and current sources. It allows to analyze the circuit behavior in a range of frequencies. Useful to study the bandwidth of the circuit;
- Transient: linear and non linear circuits, with sinusoidal and pulse voltage sources (available as In App Purchases).

User can graphically draw the circuit and then the circuit can be analyzed.

Circuit may be controlled by means of the following gestures:

- Drag: to move the circuit into the desired position
- Tap on a component: to modify the components parameters
- Pinch: to zoom in and out
- Double Finger Double Tap: to reset position and zoom level to the original values

Tapping DC button, user gets voltage at each circuits node.

Tapping AC button, user gets voltage phasors at each circuit node or the bode graph of the voltage at each circuit node (see BJT 16 - Common Emitter).

Phasor graphs may be controlled by means of the following gesture:

- Drag: to move the graph into the desired position
- Pinch: to zoom in and out
- Double Finger Double Tap: to reset position and zoom level to the original values

Pressing Transient button, user can analyze circuits behavior during time and get graphs of voltages and currents function of time.

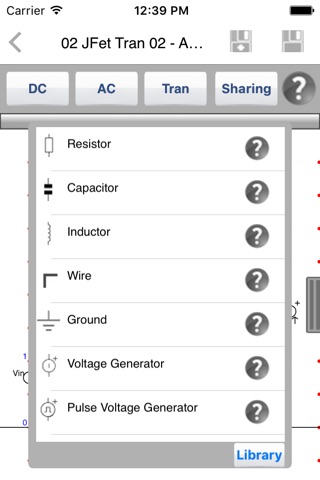

Each circuit can contain:

- Resistors
- Capacitors
- Inductors
- Mutual Coupled Inductors
- Independent sinusoidal voltage generators
- Independent pulse voltage generators
- Independent sinusoidal current generators
- Controlled voltage generators
- Controlled current generators
- Operation Amplifier
- Diodes
- Zener Diodes
- Bjt NPN and PNP
- Channel-N and Channel-P JFet
- Channel-N and Channel-P Mosfet

For each component, a short video is available to demonstrate how to insert it into the circuit and edit its characteristics.

Circuits may be easily stored and reused.

User can print:

- Circuits and components list
- Transient Analysis graphs

Circuits can be easily shared through iCloud, by mail in the internal format so that can be reused by other users (on iPad too) and in PDF format.

Visit my site for video tutorials and details about operational amplifiers internal model and diodes internal model.
